Removable Truck Bed Divider

Build a Removable Truck Bed Divider System in a Weekend

By /

A removable truck bed divider system keeps groceries, toolboxes, camping gear, recovery equipment, and loose jobsite supplies from turning into one loud pile at the tailgate. Better yet, it gives you order when you need it and a clear bed when you do not. This guide walks you through building a simple, sturdy divider that uses your truck’s existing bed features instead of permanently drilling into it.

This setup is best for pickup owners who haul changing loads and want a practical weekend upgrade without committing to an expensive drawer system. The exact design depends on your truck bed, available tie-down points, and the cargo you carry most often, so measure carefully and build around your real-world needs—not the fantasy version where every load is perfectly square and nothing ever slides around.

Affiliate disclosure: Some links in this article are affiliate links. If you make a purchase through an affiliate link, I may earn a commission at no additional cost to you. As an Amazon Associate I earn from qualifying purchases.

Quick Overview

A removable truck bed divider system creates separate cargo zones in your pickup bed. You can use it to hold smaller items near the tailgate, keep gear organized, divide work supplies from personal items, or create a contained space for coolers and camping equipment.

The basic version uses a cross-bed panel, usually made from exterior-grade plywood, supported by the truck bed sides and secured with factory tie-down points, stake pockets, bed rails, or a no-drill bracket arrangement. The key is making the divider strong enough to handle normal movement from light cargo while keeping it easy to remove when you need the full bed.

This guide is well suited to beginners who are comfortable measuring, cutting wood, drilling basic holes, and using hand or power tools safely. It is not a replacement for properly securing heavy cargo. A bed divider organizes and limits movement; ratchet straps, cargo nets, and rated tie-downs still do the serious work.

What You’ll Need

You will also need a clear idea of where the divider will sit and how you want it to mount. Factory tie-down points, stake pockets, bedside rails, and bed accessories can all affect the design.

Before You Begin

Start by cleaning out the truck bed completely. Sweep away gravel, leaves, screws, and the mysterious handful of junk that seems to reproduce under a bed mat. A clean bed makes it easier to measure accurately and helps you spot factory mounting points that may be hidden by gear.

Decide what the divider needs to do. A divider placed near the tailgate is useful for keeping everyday items within reach. One mounted farther forward can create a dedicated compartment for tools, recovery gear, or a cooler. Some owners prefer a single movable divider; others build several mounting positions so they can relocate the divider depending on the load.

Inspect the bed for usable attachment points before buying hardware. Many pickups have factory tie-down loops, rail systems, stake pockets, or other locations that may support a removable setup. Avoid relying on thin sheet metal, plastic bedliner edges, or trim pieces as structural mounting points. If you are unsure whether a point can handle the load, treat it as an organizer attachment rather than a load-bearing anchor.

Plan around cargo safety, too. A divider should not interfere with tailgate operation, tonneau cover rails, bed caps, factory cargo-management systems, or a fifth-wheel or gooseneck hitch if your truck has one. Fuel containers, batteries, sharp tools, and heavy equipment need secure restraints appropriate for the cargo.

Step-by-Step Instructions

Step 1: Choose the Divider Location and Layout

Pick the first position for your divider based on the cargo you haul most often. For example, placing it near the tailgate can create a small compartment that stops grocery bags, tool cases, and loose camping gear from sliding all the way to the front of the bed.

Mark the proposed location with painter’s tape or a strip of cardboard across the bed floor. Stand back and think through how you load the truck. Make sure the compartment will be large enough for the items you want to contain, but not so large that smaller gear still has room to build speed before it hits the divider.

If you want multiple divider positions, mark each one now. That lets you plan for several mounting holes, rail positions, or strap locations instead of trying to retrofit them later.

Step 2: Measure the Bed at the Actual Mounting Height

Measure the truck bed width where the divider will sit, not just across the bed floor. Pickup beds can taper, bedliners can add thickness, and wheel wells or rail contours may change the usable width. Measure at the height where the panel will contact the bed sides or mounting brackets.

Take at least two measurements: one near the floor and one at the intended top edge of the divider. If the dimensions differ, use the smaller measurement as your starting point. A divider that is slightly narrow can be shimmed or secured with brackets. One that is too wide usually earns a few choice words and another trip to the saw.

Also measure the divider height. A lower divider is lighter, easier to remove, and less likely to interfere with a tonneau cover. A taller divider offers more containment but will receive more force from shifting cargo. Build for the load you actually carry.

Step 3: Make a Template if the Bed Has an Irregular Shape

A simple rectangular truck bed may allow you to cut the panel directly from your measurements. If your bed sides have molded liner ribs, curved corners, rail hardware, or a spray-in liner with uneven edges, make a cardboard template first.

Trim the cardboard gradually until it fits the intended location without forcing it into place. Leave a little clearance around the edges so the divider is easy to remove and does not scrape the bed finish every time you use it.

Transfer the template shape to your plywood or panel material. This extra step takes a little longer, but it is much cheaper than realizing your finished divider is a beautiful piece of wood that cannot actually fit in the truck bed.

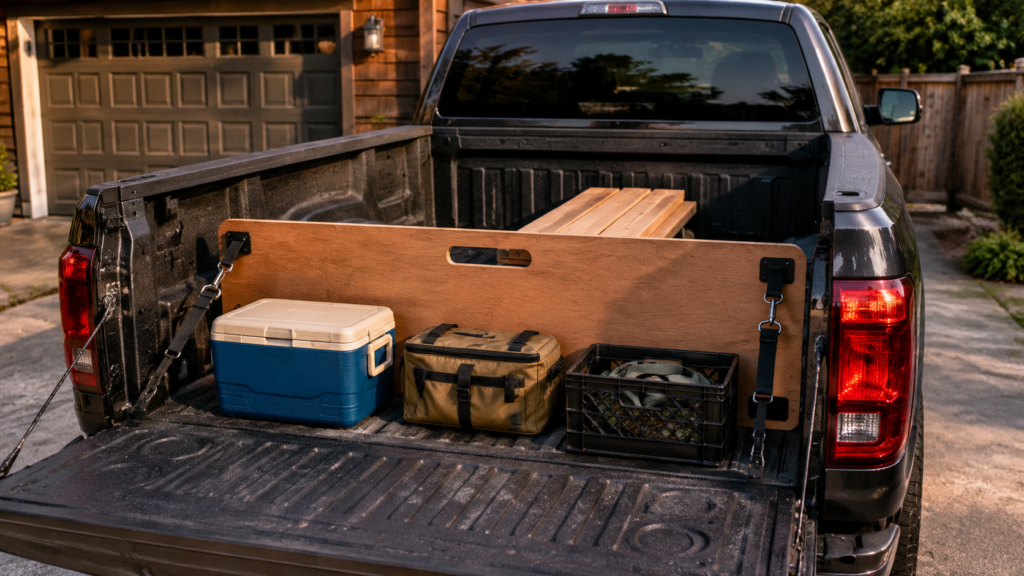

Removable Truck Bed Divider_custom

Step 4: Cut and Finish the Divider Panel

Cut the panel along your marked lines using the saw that best suits the material and your workspace. Support the panel properly during cutting so it does not bind, splinter excessively, or drop at the end of the cut.

Test-fit the unfinished panel in the truck bed. Check that it sits where intended, clears the tailgate and bed rails, and can be lifted in and out without becoming a wrestling match. Trim small areas as needed.

Once the fit is right, sand all cut edges and corners. Rounded edges are easier on your hands, less likely to snag cargo, and kinder to bedliners. Seal exposed plywood edges thoroughly with an exterior-rated finish. Truck beds see rain, mud, temperature swings, and the occasional spilled drink that will somehow find the one unsealed edge.

Let the finish cure according to the product instructions before installing the divider. A coating that feels dry is not always ready to handle abrasion or weight.

Step 5: Choose a No-Drill Mounting Method

The simplest removable divider systems use existing truck bed attachment points. Depending on your truck, you may be able to secure the divider with straps connected to factory bed loops, brackets that engage stake pockets, compatible fittings for an existing cargo rail system, or removable hardware designed for the truck’s factory mounting points.

For a light-duty organizer divider, tie-down straps can hold the panel in position and make removal quick. Use straps on both sides and keep them tight enough that the panel cannot tip or slide during normal driving. This approach works best when the divider is mainly controlling light totes, bags, and loose gear.

For heavier-duty use, choose a more rigid connection. Brackets, bolts, locking pins, or purpose-built rail fittings can keep the panel from shifting side to side. Make sure the hardware is compatible with the mounting point and does not create sharp protrusions that could catch cargo, hands, or a tonneau cover.

Step 6: Drill Hardware Holes Carefully

With the panel test-fitted in the bed, mark the mounting-hole locations using the truck’s tie-downs, brackets, or rail attachments as references. Remove the panel before drilling. Drilling while it is balanced in the bed is a fine way to scratch paint, chew up a liner, or put a hole somewhere you did not intend.

Drill pilot holes first, then enlarge them gradually to the size required by your hardware. Keep holes far enough from the panel edges to avoid splitting or weakening the plywood. If your design uses bolts, add washers where needed to spread the clamping force across the wood.

Dry-fit all hardware before final assembly. The divider should sit square, remain upright, and release without requiring you to remove half the truck bed accessory system.

Step 7: Install the Divider and Check Its Stability

Install the finished divider in the chosen position and tighten or secure the mounting hardware. Push on the panel from both sides and check for rocking, sliding, or rattling. A small amount of flex may be normal with a wood panel, but the divider should not lean forward, fall backward, or walk across the bed floor.

Open and close the tailgate. If you use a tonneau cover, operate it through its full range as well. Verify that the divider does not contact moving parts, pinch cover seals, or interfere with cargo rails.

If the divider has noticeable movement, improve the mounting before loading it. Adding rubber pads, adjusting brackets, using a second attachment point, or changing the strap angle can often solve the issue without redesigning the whole system.

Removable Truck Bed Divider with straps

Step 8: Load It Properly and Use Secondary Restraints

Place cargo in the divided sections with the heaviest items low and as close to the bed floor as possible. Do not assume the divider can stop a heavy toolbox, generator, or loaded cooler during hard braking. Secure substantial cargo with rated tie-down straps connected to suitable truck bed anchors.

Use the divider to reduce empty space and keep smaller items grouped together. Cargo nets, bins, rubber mats, and non-slip liners can make the system work better, especially if you carry mixed loads.

Before heading out, give the load a firm shake test. If something shifts easily while parked, it will shift more enthusiastically once potholes and corners get involved.

Helpful Tips

  • Build the divider slightly lighter than you think you need. A removable system only stays useful if you can lift it out without planning your afternoon around it.
  • Add a handhold near the top of the panel if you will remove it often. Keep the opening smooth and clear of mounting hardware.
  • Use rubber edging, weatherstripping, or rubber pads where the divider contacts painted surfaces or a bedliner. This can reduce rattles and scuffing.
  • Consider adding several planned mounting positions if your hauling needs change often. A movable divider is far more useful than one that works for only one exact load.
  • Keep a small storage bag for removable pins, straps, and hardware when the divider is not installed. Tiny hardware disappears quickly in garages and truck consoles.
  • If you use a bed mat, test the divider with the mat installed. Thick rubber mats can change the fit and may allow an unsecured panel to slide.

Common Mistakes to Avoid

  • Measuring only the bed floor: Truck beds may taper or have liner contours higher up. Measure where the divider will actually sit.
  • Making the divider too tight: A press-fit panel can damage the bed, bind against the liner, and become frustrating to remove.
  • Using a divider as the only cargo restraint: Heavy items still need properly rated straps and secure anchor points.
  • Mounting to weak or decorative components: Plastic trim, thin liner material, and non-structural rails are not reliable load-bearing mounts.
  • Skipping edge sealing on plywood: Bare plywood edges absorb moisture and may eventually delaminate or splinter.
  • Ignoring tailgate and tonneau cover clearance: Check all moving parts before calling the job done.
  • Leaving exposed bolts or sharp corners: These can tear bags, snag straps, and make reaching into the bed less pleasant than it needs to be.

Final Thoughts

A removable truck bed divider is one of those simple upgrades that pays off every time you open the tailgate and find your gear where you left it. The best design is not necessarily the fanciest one. It is the one that fits your truck, comes out easily, and keeps everyday cargo under control.

Build it around your normal hauling habits, secure it to solid attachment points, and keep using proper tie-downs for anything heavy. A divider brings order to the bed. It does not repeal the laws of momentum.

Frequently Asked Questions

Can I build a truck bed divider without drilling into my truck?

Yes. Many removable designs use factory tie-down points, cargo rails, stake pockets, or straps to secure the divider without drilling into the bed itself. The available options depend on your truck’s bed configuration.

What material works best for a removable truck bed divider?

Exterior-grade plywood is a practical choice because it is easy to cut, reasonably strong for its weight, and simple to replace or modify. Seal it thoroughly, especially along the cut edges. Other panel materials can work if they are durable, weather-resistant, and suitable for the expected load.

Will a truck bed divider keep heavy cargo from sliding?

It can help reduce movement, but it should not be the only restraint for heavy cargo. Secure heavy equipment, loaded toolboxes, coolers, and other dense items with properly rated straps attached to suitable anchor points.

Can I use the divider with a tonneau cover?

Usually, yes, as long as the divider remains below the cover’s operating path and does not interfere with rails, clamps, seals, or folding panels. Test the cover through its full range of movement before loading the bed.
